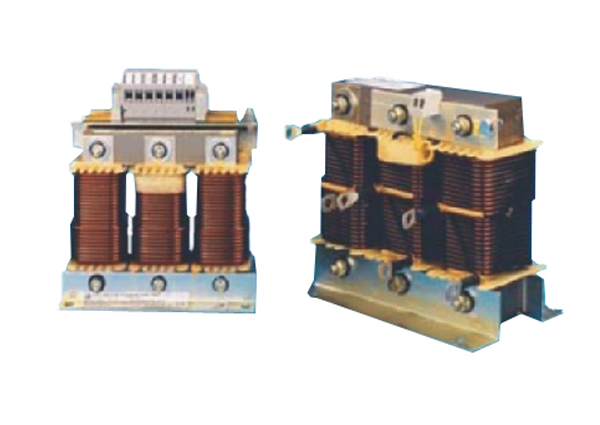

Reactor

　　The purpose of tuning the reactor is to make each of the tuned reactance capacitors, in the harmonic rate are presented inductive, series resonant frequency is lower than the system minimum harmonic frequency, and the line will not form a parallel resonant circuit, that is not Resulting in harmonic amplification. In addition, the tuning reactor can also filter the low harmonic current of about 10-50%

design
The reactor uses a high permeability magnet steel sheet
Use enameled copper wire
Dry in a vacuum
Subject to high voltage and long service life
Use a terminal to draw wiring
Temperature protection using thermal temperature switch
