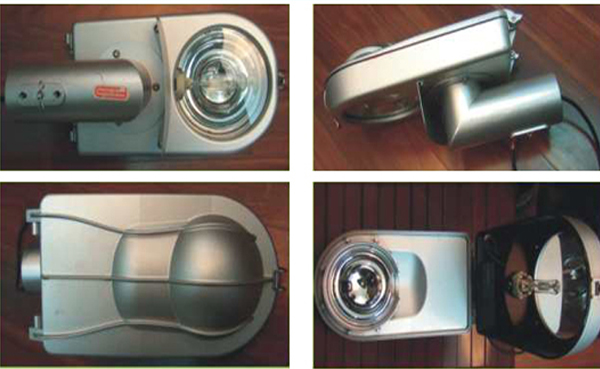

Optical grade lights

Product Introduction
    Mainly the application of reflective optics principle, the luminous efficiency of the light source to the limit, and to solve the light source in the lamp high temperature caused by the deadly problem of life, energy saving to achieve the ultimate goal.

Three major innovations

Reflector: Reflective Reflective Optical Glass Mirror Reflector Bowl
Light source: ceramic metal halide lamp
Ballast: high power electronic ballast
Optical parameters

Model: FH-150, FH-70, FH-35
Light source: CDM 150W, 70W, 35W
Size: length 386mm × width 198mm × thickness 199mm
Color temperature: 3000K
Dust and Waterproof: IP65
Color: Ra90
Lamp housing: aluminum alloy material
Beam angle: before throwing both sides of the ultra wide angle of 120 degrees
Installation height: 10 meters (the original street lights); new street 6 meters
Average illumination: 20Lux above (150W); new street light (70W / 35W)
Reflective bowl: precision reflective optical glass mirror reflective bowl Φ14.5cm
The highest illumination: 40Lux above (150W); new street light (70W / 35W)
Reflectivity: 95% or more
Covers an area of ​​1000 square meters (10 meters high); 300 square meters (6 meters high)
Saving energy
50W ceramic metal halide lamp can replace the traditional 400W sodium lamp brightness and light range
Energy saving rate of more than 60%
(400W high pressure sodium lamp as an example)
【Calculation formula = (480-158) / 480 = 67%】

Energy saving rate

Optical street light on the LED lights: energy saving rate of 60%
Optical street light on the 400W high pressure sodium lamp: energy saving rate of 67%
Optical lights on the mercury lamp, higher energy efficiency
