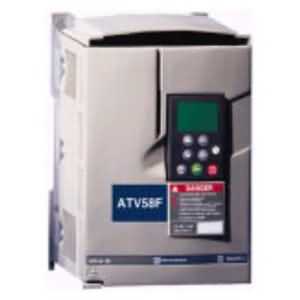

ATV58F series inverter

Details:

  Altivar 58F three-phase asynchronous motor with high performance closed-loop flux vector inverter, built-in speed feedback interface, integrated brake control, in low speed and complex dynamic conditions on the motor torque and speed accuracy control.

Technical Description:

Power: 0.75-55kW
Voltage: three-phase 380-500V
Frequency: 50 / 60Hz
Built-in EMC filter, built-in brake unit
The body provides four switch inputs, two analog inputs, two relay outputs, one analog output, optical encoder interface.
A variety of optional cards (extended I / O cards, multi-parameter cards, simple positioning cards)
Various options (remote control accessories, brake resistor, line reactance, RFI filter, output filter and reactance, etc.)
Multiple communication: Modbus, Fipio, rofibus, odbus +, Interbus-s, Uni-Telway, Ethernet, AS-i
