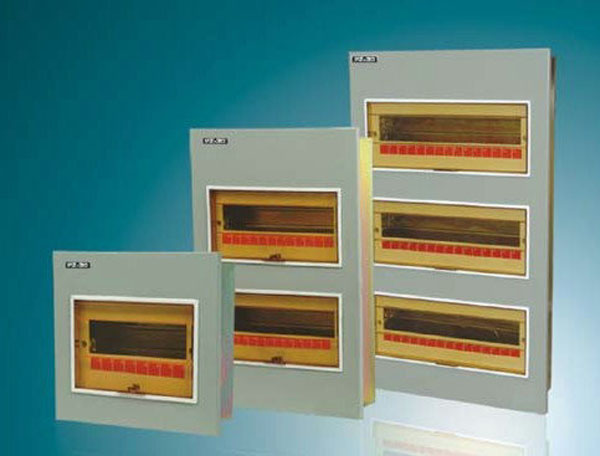

PZ30 modular terminal combination of electrical appliances is a terminal installation of the device, which is characterized by the size of electrical appliances modular installation of orbital shape of the art, the use of security, the product is suitable for rated voltage 220V or 380V, the total load current Not more than 100A of the terminal electrical appliances, as the control of electrical equipment, the line overload, short circuit, over voltage and leakage from the protection, widely used in high-rise buildings, residential, railway stations, ports, airports, hospitals, Commercial and industrial enterprises.
PZ30 technical parameters:
Rated insulation voltage | Rated operating voltage | Rated operating current | Rated frequency | Enclosure rating |
400V | 380V/220V | ≤100A | 50Hz | IP30 |
PZ30 distribution box use of the environment:
1, the altitude can not exceed 2000m.
2, the ambient air temperature is not higher than +40 ℃, not less than -5 ℃, 24h the average temperature should not be higher than +35 ℃.
3, the ambient air relative to humidity at the maximum temperature of +40 ℃ when not more than 50%, at a lower temperature to allow a greater relative humidity, such as +20 ℃ when 90%, should be taken into account due to changes in temperature may Will occasionally produce the effect of condensation.
4, the equipment should be installed in places where there is no severe vibration and shock, and where it is not enough to corrode electrical components.
